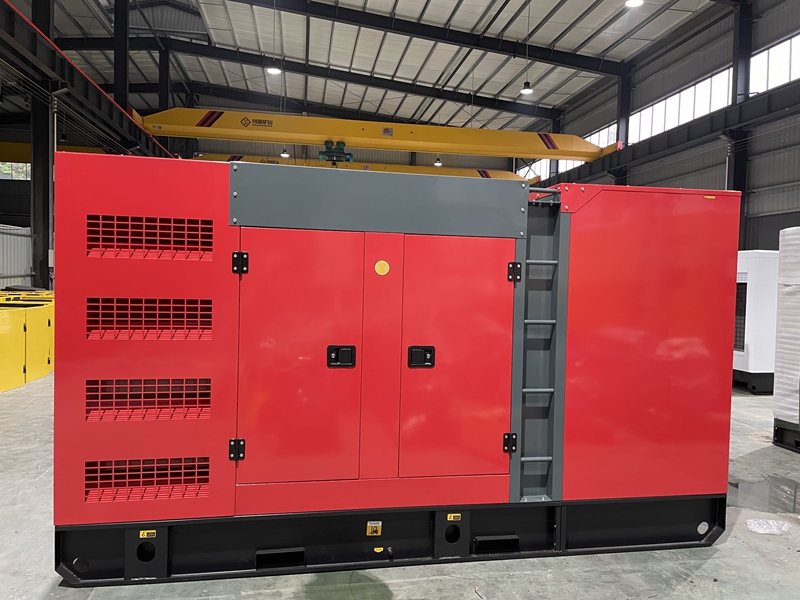

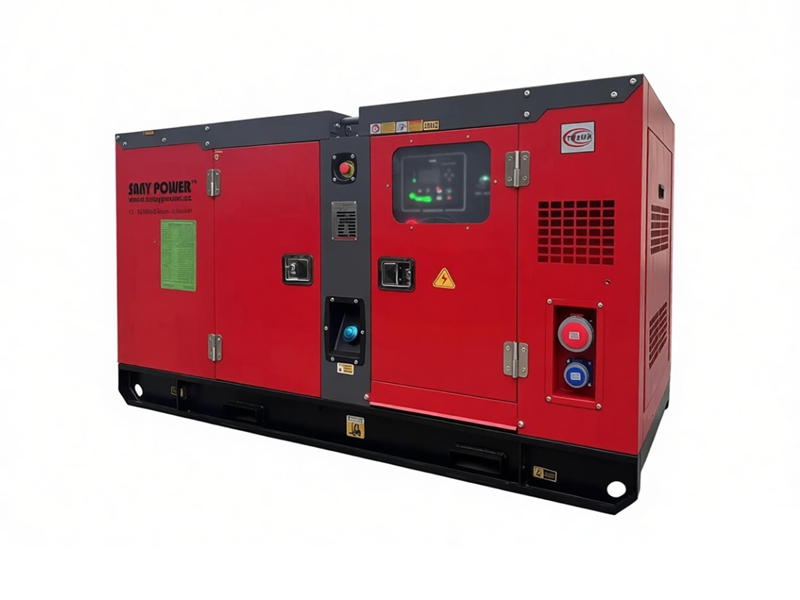

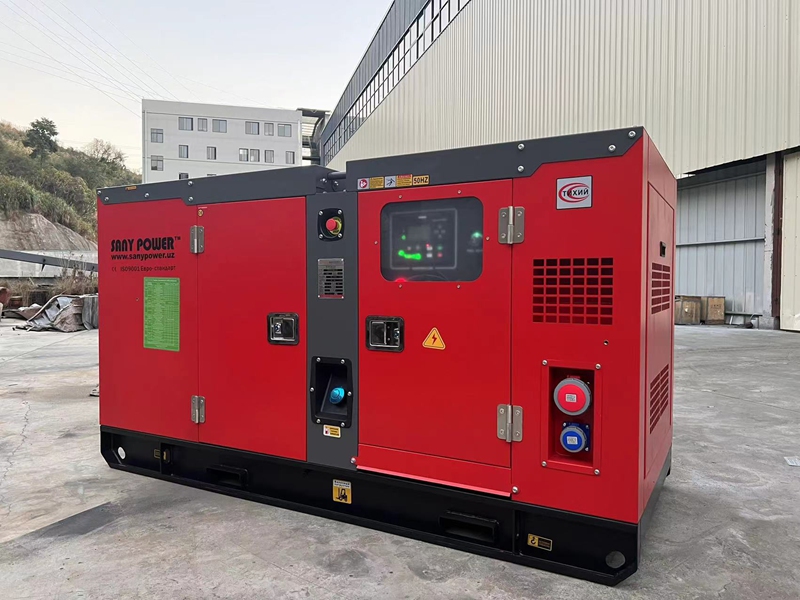

Diesel Generator Sets Powered By Baudouin Engine


Availability:

Quantity:



Inquire Add to Basket

Silent Diesel Generator Sets Diesel Generator Sets Generators Cummins Generator Sets High-Power Generator Sets

Product Description

Generator set model	Main power supply		Backup power supply		Frequency	Rated current	Rated current	Volume mute box size	Weight
Generator set model	KW	KVA	KW	KVA	Hz	A	Rated current	mm	Weight
GFC-20BD	16	20	17.6	22	50	28.8	4M06G20/5	22009601200	770
GFC-25BD	20	25	22	27.5	50	36	4M06G25/5	22009601200	780
GFC-30BD	24	30	26.4	33	50	43.2	4M06G35/5	22009601200	820
GFC-38BD	30	37.5	33	41.25	50	54	4M06G44/5	22009601200	850
DFC-45BD	36	45	39.6	49.5	50	64.8	4M06G50/5	22009601200	880
GFC-50BD	40	50	44	55	50	72	4M06G55/5	22009601200	920
GFC-63BD	50	62.5	55	68.75	50	90	4M10G70/5	240010001300	970
GFC-80BD	64	80	70.4	88	50	115.2	4M10G88/5	240010001300	1060
GFC-100BD	80	100	88	110	50	144	4M10G110/5	281011401830	1120
GFC-125BD	100	125	110	137.5	50	180	6M11G150/5	323011701800	1260
GFC-150BD	120	150	132	165	50	216	6M11G165/5	320011001700	1370
GFC-200BD	160	200	176	220	50	288	6M16G220/5	370013002100	1650
GFC-230BD	184	230	202.4	253	50	331.2	6M16G250/5	370013002100	1960
GFC-250BD	200	250	220	275	50	360	6M16G275/5	370013002100	2340
GFC--313BD	250	312.5	275	343.75	50	450	6M16G350/5	370013002100	2650
GFC-400BD	320	400	352	440	50	576	6M21G385/5	440014002220	3210
GFC-425BD	340	425	360.8	451	50	590.4	6M21G440/5	440014002220	3380
GFC-450BD	360	450	400	500	50	648	6M21G500/5	440014002220	3665
GFC-500BD	400	500	440	550	50	720	6M21G550/5	440014002220	3790
GFC-500BD1	400	500	440	550	50	720	6M26G550/5	440017002960	4120
GFC-575BD	460	575	506	632.5	50	828	6M33G660/5	530021002550	4350
GFC-625BD	500	625	550	688	50	900	8M21G690/5	503018602550	4560
GFC-650BD	520	650	572	715	50	936	6M33G715/5	530021002550	4750
GFC-670BD	536	670	594	742.5	50	972	6M33G750/5	530021002550	4870
GFC-750BD	600	750	660	825	50	1080	6M33G825/5	530021002550	5120
GFC-800BD	640	800	704	880	50	1152	12M26G900/5	590022502550	8390
GFC-900BD	720	900	792	990	50	1296	12M26G1000/5	590022502550	8650
GFC-1000BD	800	1000	880	1100	50	1440	12M26G1100/5	590022502550	9220
GFC-1125BD	900	1125	990	1237.5	50	1620	12M33G1250/5	590022502550	9730
GFC-1250BD	1000	1250	1100	1375	50	1800	12M33G1400/5	590022502550	10600
GFC-1400BD	1120	1400	1210	1512.5	50	1980	12M33G1500/5	590022502550	11200
GFC-1500BD	1200	1500	1320	1650	50	2160	12M33G1650/5	590022502550	12450
GFC-1650BD1	1240	1550	1320	1650	50	2160	16M33G1700/5	1219224383500	13850
GFC-1750BD	1400	1750	1540	1925	50	2520	16M33G1900/5	1219224383500	14420
GFC-1875BD	1500	1875	1650	2062.5	50	2700	16M33G2000/5	1219224383500	14860
GFC-2000BD	1600	2000	1760	2200	50	2880	16M33G2250/5 ^	1219224383500	15520
GFC-2100BD	1680	2100	1815	2268.75	50	2970	20M33G2250/5	1219224383500	16980
GFC-2250BD	1800	2250	1980	2475	50	3240	20M33G2500/5	1219224383500	17580
GFC-2250BD1	1800	2250	1980	2475	50	3240	12M55G2550/5	1219230003500	18420
GFC-2500BD	2000	2500	2200	2750	50	3600	12M55G2750/5	1219230003500	18870
GFC--2750BD	2200	2750	2400	3000	50	3960	12M55G3000/5 ^	1219230003500	19320
