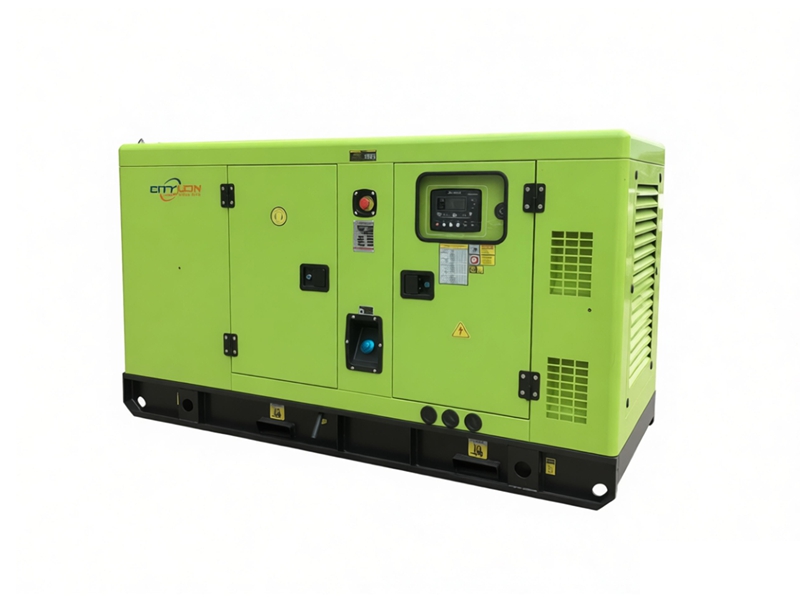

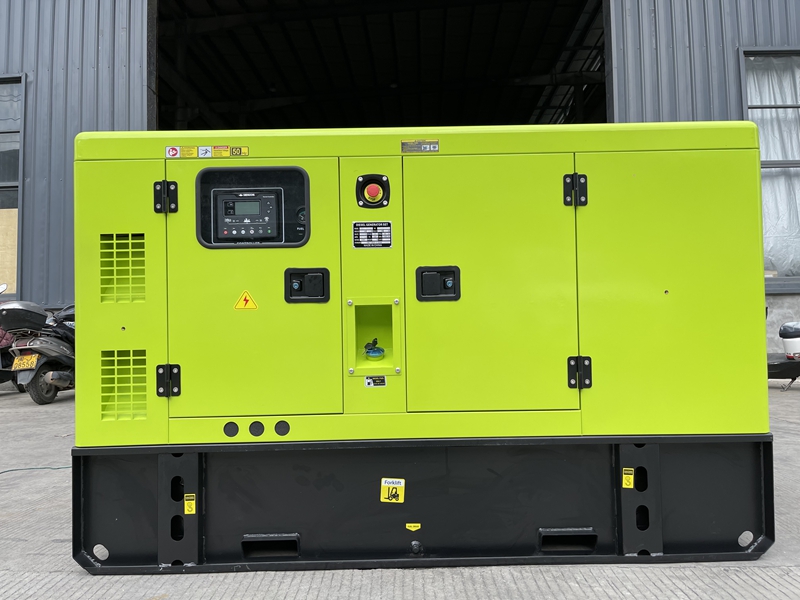

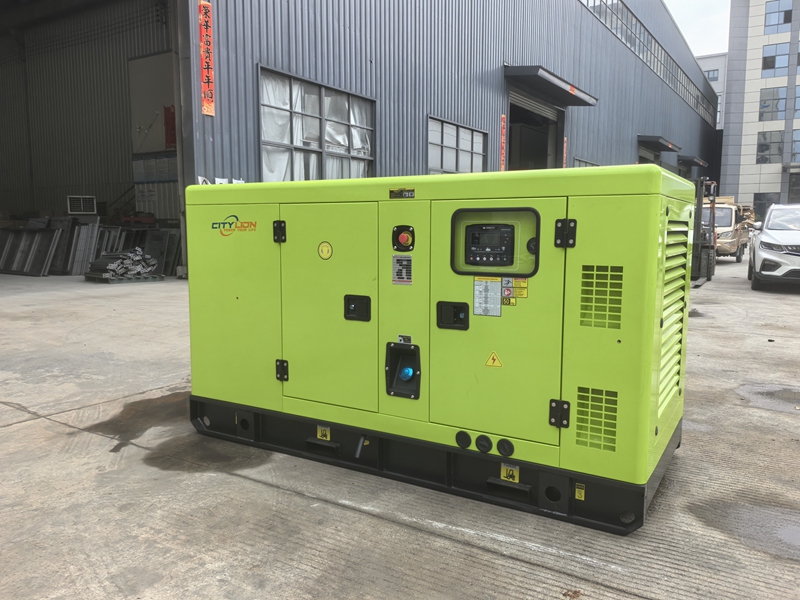

Diesel Generator Sets Powered By Yuchai Engine 50hz/1500rpm

Diesel Generator Sets Powered By Yuchai Engine 50hz/1500rpm


Availability:

Quantity:



Inquire Add to Basket

Silent Diesel Generator Sets Diesel Generator Sets Generators Cummins Generator Sets High-Power Generator Sets

Product Description

Genset Model	Genset output						Technical Data of Diesel Engine					Weight
	Prime			Standby		Engine model	Cylinder	Displacement	Fuel consumption	Alternator	Opening type size mm
	KW	KVA		KW	KVA		Cylinder	Displacement	Fuel consumption		Opening type size mm
	KW	KVA		KW	KVA		L	L	L/h		mm	KG
Yuchai T2
GFC-20YC	16		20	18	22	YC4V35-D20	L4	2.5	4.82	KLG184ES	1800×750×1200	920
GFC-25YC	20		25	22	28	YC4V45Z-D20	L4	2.5	5.78	KLG184FS	1800×750×1200	920
GFC-38YC	30		38	33	41	YC4V55Z-D20	L4	2.5	8.67	KLG184H	1800×750×1200	920
GFC-50YC	40		50	44	55	YC4D90Z-D25	L4	4.214	11.08	KLG224D	1800×700×1200	1000
GFC-63YC	50		63	55	69	YC4D90Z-D25	L4	4.214	13.86	KLG224E	1800×700×1200	1000
GFC-80YC	64		80	70	88	YC4A100Z-D25	L4	4.84	15.81	KLG224F	1800×700×1200	1000
GFC-100YC	80		100	88	110	YC4A140L-D25	L4	4.84	19.76	KLG274C	2250×800×1300	1000
GFC-125YC	100		125	110	138	YC4A180L-D20	L4	4.84	25.30	KLG274D	2300×800×1300	1500
GFC-125YC	100		125	110	138	YC6B180L-D20	L6	6.871	23.61	KLG274D	2300×830×1300	1600
GFC-150YC	120		150	132	165	YC6B205L-D20	L6	6.871	28.34	KLG274F	2300×830×1300	1600
GFC-182YC	145.6		182	160	200	YC6A245L-D21	L6	7.255	38.86	KLG274G	3100×1050×1750	2750
GFC-250YC	200		250	220	275	YC6MK350L-D20	L6	10.338	46.99	KLG274K	3100×1050×1750	2750
GFC-313YC	250		313	275	344	YC6MK420L-D20	L6	10.338	58.73	KLG314E	3200×1150×1750	3000
GFC-380YC	304		380	330	413	YC6MJ500L-D21	L6	11.726	75.90	KLG314F	3200×1200×1750	3100
GFC-500YC	400		500	440	550	YC6T600L-D22	L6	16.35	92.53	KLG354D	3500×1500×970	4000
GFC-500YC	400		500	440	550	YC6T660L-D20	L6	16.35	92.53	KLG354D	3500×1500×1970	4000
Yuchai T3
GFC-20YC	16	20		18	22	YCDV254FHZ-25	L4	2.5	3.95	KLG184ES	1800×700×1200	980
GFC-25YC	20	25		22	28	YCDV254FHZ-35	L4	2.5	4.94	KLG184FS	1800×700×1200	980
GFC-30YC	24	30		26	33	YCDV254FHZ-40	L4	2.5	5.93	KLG184GS	1800×700×1200	980
GFC-38YC	30	38		33	41	YCDV254FHZ-50	L4	2.5	7.41	KLG184H	1800×700×1200	980
GFC-50YC	40	50		44	55	YCD4V33H6-75	L4	2.5	9.88	KLG224D	1800×700×1200	980
GFC-50YC	40	50		44	55	YC4D80-D34	L4	3.86	9.88	KLG224D	1800×700×1200	980
GFC-63YC	50	63		55	69	YC4D90-D34	L4	3.86	12.35	KLG224E	1800×700×1200	1000
GFC-75YC	60	75		66	83	YC4D105-D34	L4	4.75	14.82	KLG224F	1800×700×1200	1000
GFC-100YC	80	100		88	110	YC4D140-D31	L4	4.75	19.76	KLG274C	1800×700×1200	1000
GFC-125YC	100	125		110	138	YC4D155-D31	L4	4.21	24.70	KLG274D	1800×700×1200	1000
GFC-125YC	100	125		110	138	YC4A165-D30	L4	4.84	25.30	KLG274D	1800×700×1200	1000
GFC-150YC	120	150		132	165	YC4A190-D30	L4	4.84	30.36	KLG274F	1800×700×1200	1000
GFC-150YC	120	150		132	165	YCD6Q23H8-210	L6	7.42	29.64	KLG274F	2300×800×1300	1500
GFC-188YC	150	188		165	206	YCD6Q33H6-260	L6	7.42	37.05	KLG274G	2400×970×1500	2100
GFC-200YC	160	200		176	220	YCD6Q33H6-260	L6	7.42	39.52	KLG274H	2400×970×1500	2100
GFC-250YC	200	250		220	275	YCA08350-D30	L6	7.53	48.19	KLG274K	2400×970×1500	2100
GFC-313YC	250	313		275	344	YC6MK420-D30	L6	10.34	58.73	KLG314E	3100×1050×1750	2750
GFC-375YC	300	375		330	413	YC6MK450-D30	L6	10.34	70.48	KLG314F	3100×1050×1750	2750
GFC-375YC	300	375		330	413	YC6MJ500-D30	L6	11.73	73.37	KLG314F	3100×1050×1750	2750
GFC-438YC	350	438		385	481	YC6MJ540-D30	L6	11.73	85.60	KLG354C	3400×1500×1950	3800
GFC-500YC	400	500		440	550	YC6MJ600-D30	L6	11.73	93.98	KLG354D	3400×1500×1950	3800
GFC-500YC	400	500		440	550	YC6K660-D30	L6	12.94	92.53	KLG354D	3400×1500×1950	3900
GFC-625YC	500	625		550	688	YC6TD780-D31	L6	19.6	117.47	KLG354E1	3500×1500×1950	4300
GFC-625YC	500	625		550	688	YC6TD840-D31	L6	19.6	117.47	KLG354E1	3500×1500×1950	4300
GFC-750YC	600	750		660	825	YC6TD900-D31	L6	19.6	140.96	KLG404C	3500×1500×1950	4300
GFC-750YC	600	750		660	825	YC6TD1000-D30	L6	19.6	140.96	KLG404C	3500×1500×1950	4300
GFC-875YC	700	875		770	963	YC6TH1070-D31	L6	28.14	170.36	KLG404ES	4800×2100×2500	7500
GFC-1000YC	800	1000		880	1100	YC6TH1220-D31	L6	28.14	194.70	KLG404F	4800×2100×2500	7500
GFC-1000YC	800	1000		880	1100	YC6TH1320-D31	L6	28.14	194.70	KLG404F	5200×2150×2500	7800
GFC-1250YC	1000	1250		1100	1375	YC6C1520-D31	L6	39.58	234.94	KLG404H	5400×2150×2600	9800
GFC-1250YC	1000	1250		1100	1375	YC6C1660-D30	L6	38.58	234.94	KLG404H	5400×2150×2600	9800
GFC-1500YC	1200	1500		1320	1650	YC12VTD1830-D30	V12	39.2	286.27	KLG545C	6500×2300×2600	13600
GFC-1500YC	1200	1500		1320	1650	YC12VTD2000-D30	V12	39.2	286.27	KLG545C	6500×2300×2600	13600
GFC-1875YC	1500	1875		1650	2063	YC16VTD2270-D30	V16	52.26	357.83	KLG545E	6500×2300×2600	13800
GFC-2000YC	1600	2000		1760	2200	YC16VTD2510-D30	V16	52.26	381.69	KLG545F	6500×2300×2600	14000
GFC-2000YC	1600	2000		1760	2200	YC16VTD2700-D30	V16	52.26	381.69	KLG545F	6500×2300×2600	14000
GFC-2500YC	2000	2500		2200	2750	YC12VC3000-D30	V12	79.17	481.93	KLG545M	6500×2300×2600	14000
GFC-2500YC	2000	2500		2200	2750	YC16VC3300-D31	V16	105.56	469.88	KLG545M	7350×2670×2950	17600
GFC-3000YC	2400	3000		2640	3300	YC16VC3600-D31	V16	105.56	563.86	KLG545M	7350×2670×2950	19200
GFC-3000YC	2400	3000		2640	3300	YC16VC4000-D31	V16	105.56	563.86	KLG545M	7350×2670×2950	19200
