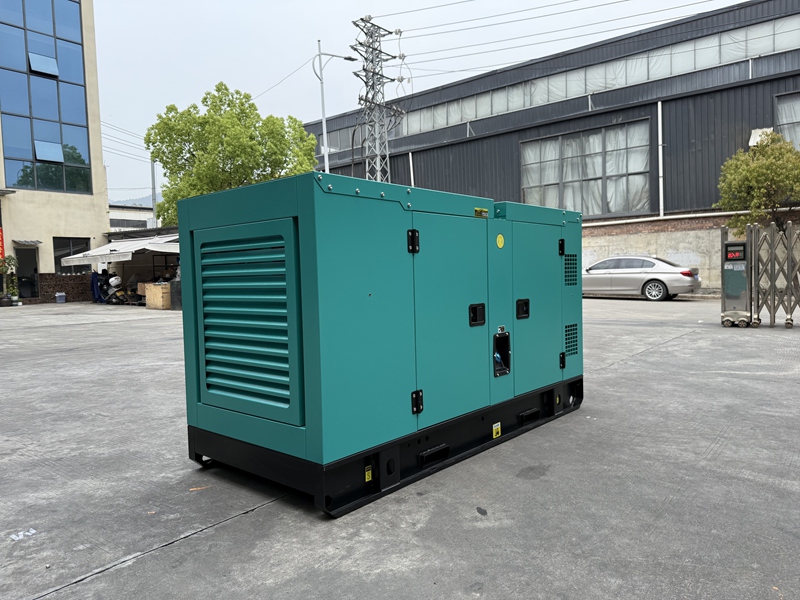

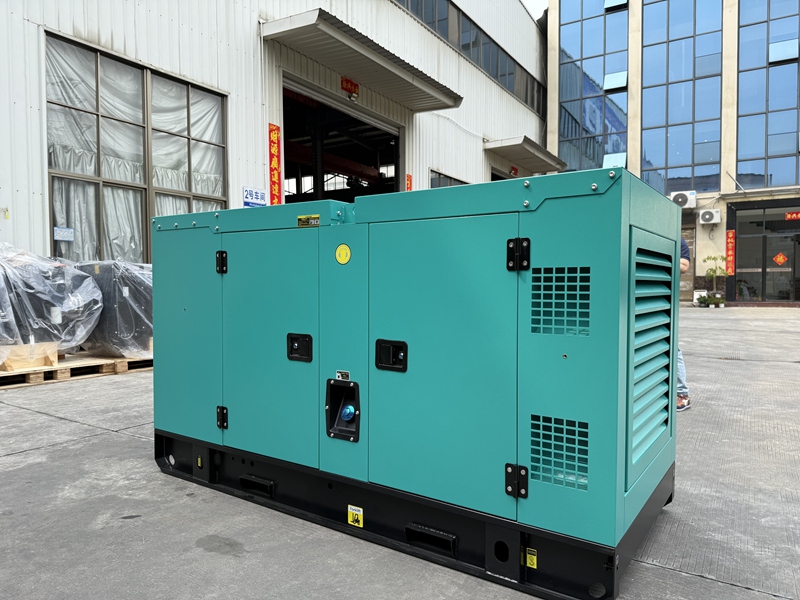

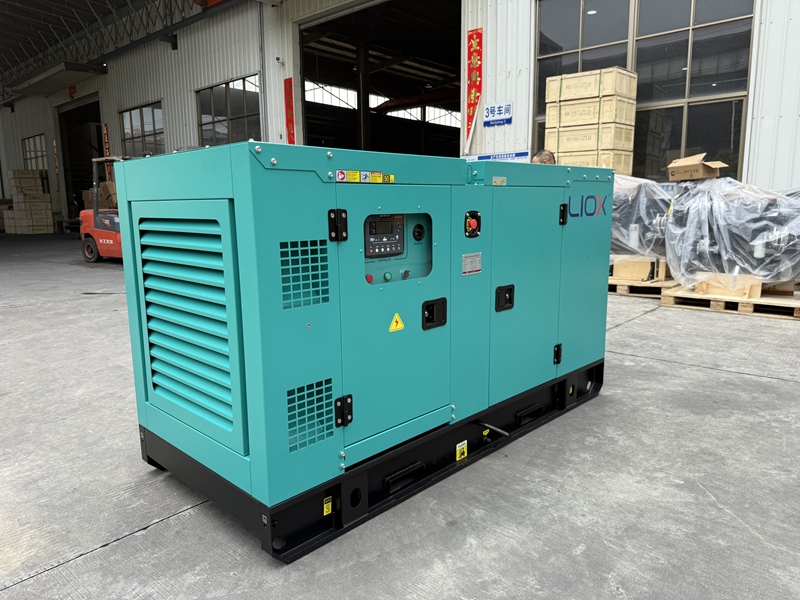

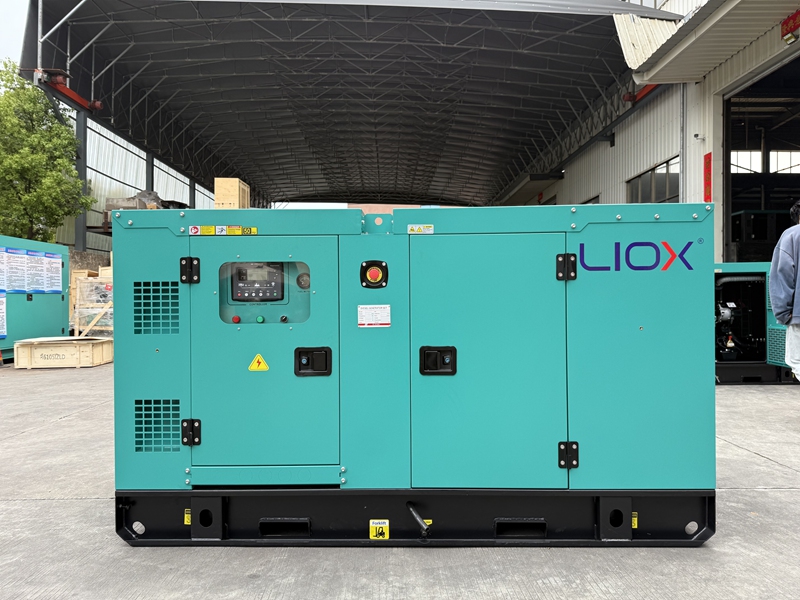

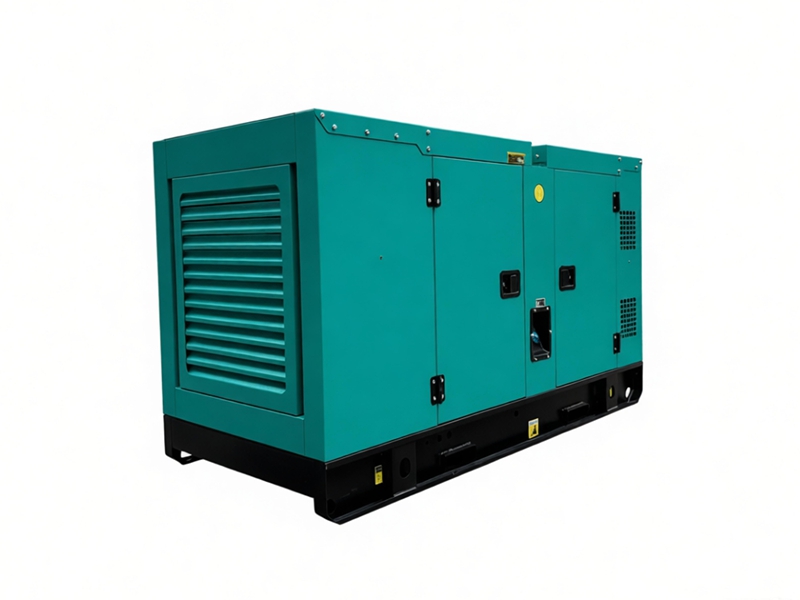

Diesel Generator Sets Powered By Cummins Engine 50hz/1500rpm

Diesel Generator Sets Powered By Cummins Engine 50hz/1500rpm


Availability:

Quantity:



Inquire Add to Basket

Silent Diesel Generator Sets Diesel Generator Sets Generators Cummins Generator Sets High-Power Generator Sets

Product Description

Genset Model	Genset output				Technical Data of Diesel Engine
	Prime		Standby		Engine model	Cylinder	Displacement	Fuel consumption	Alternator	Silent Type Size	Weight
	KW	KVA	KW	KVA	Engine model	L	L	L/h	Alternator	mm	KG
GFC-20C	16	20	18	22	4B3.9-G11	4L	3.9	6.5	KLG184ES	2200×900×1250	1100
GFC-27C	22	27	24	30	4B3.9-G1	4L	3.9	7.1	KLG184F	2200×900× 1250	1150
GFC-27C	22	27	24	30	4B3.9-G2	4L	3.9	6.7	KLG184F	2200×900×1250	1150
GFC-30C	24	30	26	33	4B3.9-G12	4L	3.9	8	KLG184G	2250×1000×1250	1200
GFC-40C	32	40	36	44	4BT3.9-G1	4L	3.9	10	KLG184G	2250×1000×1500	1230
GFC-40C	32	40	36	44	4BT3.9-G2	4L	3.9	9.3	KLG184J	2250×1000×1500	1230
GFC-50C	40	50	44	55	4BTA3.9-G2	4L	3.9	11.5	KLG184J	2350×1000×1500	1340
GFC-60C	48	60	53	66	4BTA3.9-G2	4L	3.9	11.5	KLG224D	2450×1000×1550	1400
GFC-80C	64	80	70	88	4BTA3.9-G11	4L	3.9	20.1	KLG224E	2450×1000×1500	1400
GFC-90C	72	90	80	100	6BT5.9-G1	6L	5.9	22	KLG224G	3000×1100×1600	1683
GFC-100C	80	100	88	110	6BT5.9-G2	6L	5.9	22	KLG274C	3000×1100×1600	1683
GFC-120C	96	120	106	132	6BTA5.9-G2	6L	5.9	27	KLG274C	3000×1100×600	1700
GFC-138C	110	138	121	151	6BTAA5.9-G2	6L	5.9	30	KLG274D	3100×1100×1600	1810
GF-163C	130	163	143	179	6BTAA5.9-G12	6L	5.9	32.5	KLG274E	3100×1100×1650	1894
GFC-188C	150	188	165	206	6CTA8.3-G1	6L	8.3	42	KLG274F	3250×1120× 1850	2393
GFC-188C	150	188	165	206	6CTA8.3-G2	6L	8.3	42	KLG274F	3250× 1120× 1850	2393
GFC-200C	160	200	176	220	6CTAA8.3-G2	6L	8.3	45.4	KLG274H	3300×1200×1850	2350
GFC-250C	200	250	220	275	6LTAA8.9-G2	6L	8.9	53	KLG274H	3600×1250× 1900	2450
GFC-263C	210	263	231	290	6LTAA8.9-G3	6L	8.9	53	KLG314D	3700×1250× 1900	2887
GFC-318C	254	318	280	350	6LTAA9.5-G1	6L	9.5	70	KLG314E	3700×1250×1900	2900
GFC-360C	288	360	320	400	QSZ13-G6	6L	13	81	KLG314F	4400×1700×2390	4350
GFC-375C	300	375	330	413	6ZTAA13-G3	6L	13	79	KLG314F	4400×1700 ×2390	4350
GFC-400C	320	400	352	440	QSZ13-G7	6L	13	85	KLG354C	4400×1700×2390	4350
GFC-438C	350	438	384	480	6ZTAA13-G2	6L	13	90	KLG354C	4500×1700×2390	4420
GFC-438C	350	438	384	480	6ZTAA13-G4	6L	13	98	KLG354C	4500×1700×2390	4420
GFC-438C	350	438	384	480	QSZ13-G2	6L	13	70	KLG354C	4500×1700×2390	4520
GFC-450C	360	450	400	500	QSZ13-G5	6L	13	108	KLG354C	4500×1700×2390	4520
GFC-500C	400	500	440	550	QSZ13-G3	6L	13	102	KLG354D	4500×1700×2390	4520
GFC-250C	200	250	220	275	MTA11-G2	6L	10.8	49.9	KLG274K	3750×1400×2100	3700
GFC-250C	200	250	220	275	NT855-GA	6L	13	53	KLG274K	3900×1400×2100	3785
GFC-250C	200	250	220	275	NTA855-G1	6L	14	67.6	KLG274K	3900×1400×2100	3850
GFC-275C	220	275	242	303	NTA855-G1A	6L	14	61.3	KLG314D	3950×1400×2100	3950
GFC-313C	250	313	275	344	MTAA11-G3	6L	10.8	62	KLG314E	3950×1450×2100	4000
GFC-313C	250	313	275	344	NTA855-G1B	6L	14	64.9	KLG314E	3950×1400×2100	4000
GFC-313C	250	313	275	344	NTA855-G2	6L	14	61	KLG314E	3950×1400×2100	4000
GFC-344C	280	350	310	388	NTA855-G2A	6L	14	71.9	KLG314F	4200×1400×2100	4200
GFC-350C	280	350	308	385	NTA855-G4	6L	14	75.3	KLG314F	4200×1400×2100	4200
GFC-400C	320	400	340	425	NTAA855-G7	6L	14	85.4	KLG314F	4300×1450×2250	4350
GFC-375C	300	375	330	413	KTA19-G2	6L	19	83	KLG314F	4450×1700×2450	4650
GFC-400C	320	400	352	440	QSNT-G3	6L	14	84.2	KLG354C	4500×1700×2390	4800
GFC-400C	320	400	352	440	NTAA855-G7A	6L	14	89.2	KLG354C	4400×1450×2250	4400
GFC-450C	360	450	400	500	KTA19-G3	6L	19	97	KLG354C	4500×1700×2450	4800
GFC-500C	400	500	440	550	KTA19-G3A	6L	19	107	KLG354D	4500×1700×2450	4800
GFC-500C	400	500	440	550	KTA19-G4	6L	19	107	KLG354D	4500×1700×2500	4900
GFC-525C	420	525	462	578	KTAA19-G5	6L	19	113	KLG354E	4800×1800×2500	5500
GFC-575C	460	575	506	633	KTAA19-G6	6L	19	118.5	KLG354E	4800×1800×2500	5500
GFC-590C	472	590	520	650	KTA19-G8	6L	19	144	KLG354E	4800×1800×2500	5600
GFC-650C	520	650	572	715	QSK19-G4	6L	18.9	147	KLG354F	20GP	6610
GFC-625C	500	625	550	688	KTAA19-G6A	6L	19	149.5	KLG354F	4900×1800×2500	5800
GFC-625C	500	625	550	688	KT38-G	V12	38	140	KLG354F	20HC	8400
GFC-713C	570	713	630	788	KT38-G1	V12	38	140	KLG404C	20HC	8500
GFC-725C	580	725	640	800	KT38-GA	V12	38	158	KLG404C	20HC	8550
GFC-750C	600	750	660	825	KTA38-G2	V12	38	167	KLG404C	20HC	8600
GFC-800C	640	800	704	880	KTA38-G2B	V12	38	170	KLG404D	20HC	8700
GFC-910C	728	910	800	1000	KTA38-G2A	V12	38	191	KLG404E	20HC	8850
GFC-1000C	800	1000	880	1100	KTA38-G5	V12	38	209	KLG404F	40HC	11150
GFC-1125C	900	1125	000	1250	KTA38-G9	V12	38	256	KLG404G	40HC	11210
GFC-1250C	1000	1250	100	1375	QSK38-G5	V12	37.7	274	KLG404H	40HC	13100
GFC-1250C	1000	1250	100	1375	KTA50-G3	V16	50.3	261	KLG404H	40HC	13140
GFC-1500C	1200	1500	320	1650	KTA50-GS8	V16	50.3	282	PI734C1	20GP	16000
GFC-1650C	1320	1650	450	1815	KTA50-G15	V16	50.3	288	PI734D1	20GP	16000
GFC-1705C	1365	1705	500	1875	KTA50-G15	V16	50.3	291	PI734ES1	20GP	16600
GFC-1875C	1500	1875	1650	2070	QSK60-G3	V16	60.2	305	PI734E1	40HQ	25000
GFC-2050C	1640	2050	1800	2250	QSK60-G4	V16	60.2	325	PI734 F1	40HQ	25500
GFC-2275C	1820	2275	2000	2500	QSK60-G21	V16	60.2	338	PI734H1	40HQ	26000
